Valve Products
Gate Valves – Resilient Seat

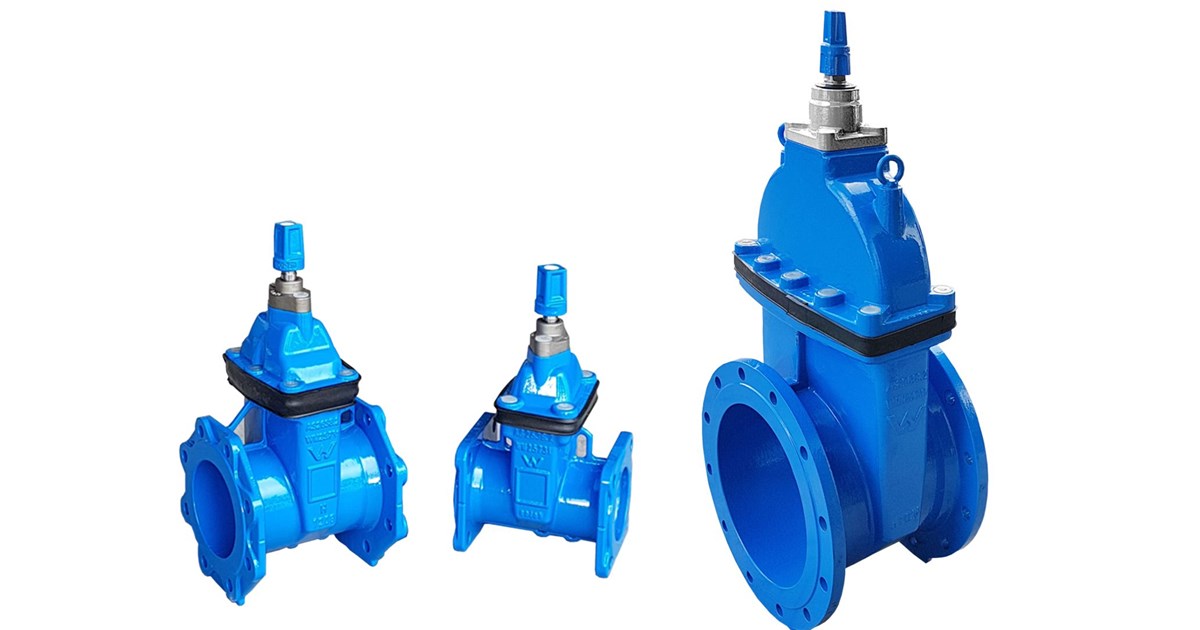

VGF – Betta Flange PN16
The VGF Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Seal Type |
Resilient Seat |
Size Range |
DN 50 – DN 400 |
Pressures |
Operating Pressure 1600 kPa (PN 16) Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16) |
Features
- High strength and corrosion resistant materials
- EPDM encapsulated ductile iron wedge ensures effective sealing
- Full bore design eliminates blockages
- Anti-friction components for lower operating torques
